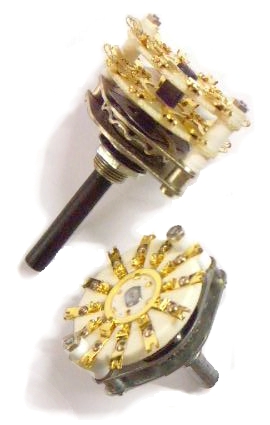

12 CONTACT SWITCHES

Type 1P ceramic - Type 1V epoxyglass


Low current switches, minimum contact resistance.

Tweezers contact system.

Adjustable stop.

BCD version: 2 sectors switches, 10 positions,
30° index angle, COM-2-4-8 contacts.
Available: natural BCD, complementary BCD.

Features:	1 pole	11 pos for each sector
	2 poles	5 pos for each sector
	3 poles	3 pos for each sector
	4 poles	2 pos for each sector
	max 8 sectors

Non shorting contacts (shorting on demand).

Index angle: 30° (60° 90° on demand).

Index torque: 1 / 1.5Kgm (other values on demand).

HV version (on demand) available
with insulated shaft glass-polyester (max 4 decks).
Nylon screws (max 1 deck) on demand.

WATERPROOF version (on demand)
an O-ring is mounted on the shaft inside the threated bushing
and a rubber washer is placed rear side the customer panel.

SPRING RETURN (see the page)
from first and second position OR from the last to the last but one position.
The system can't exceed 5 positions.

DOUBLE SPRING RETURN (see the page)
from first and second position AND from the last to the last but one position.
The system can't exceed 5 positions.

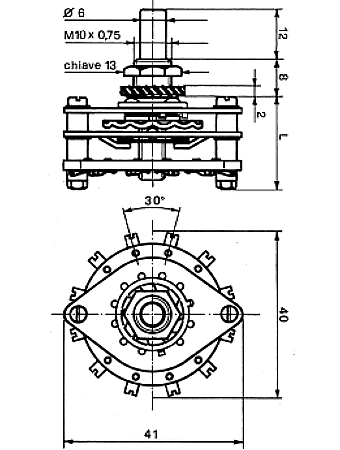

Type 1P single deck L = 23,5 mm. Add 11 mm each further deck.
Type 1V single deck L = 21 mm. Add 8.5 mm each further deck.
Special mounting: see form
