Type	1T8ST1	flat overlay, non tactile
Type	1TF8ST1	embossed keys, soft touch
Type	1TC8ST1	flat overlay, metal snap domes
Type	1TCF8ST1	embossed keys and metal domes

Two colours' graphic layer: black the ground and text,
orange the keys' ground.

Rear silk-screened on antiscratching polyester.

Other colours or customized graphic by request.

All keyboard layers are laser cut.

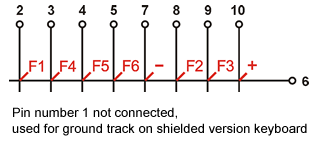

The pin number 1 (first left) of tail is not in use.

On RFI shielded keyboard (optional version),
the pin 1 become the connection for the ground track.

Circuit, spacer, and tail cover: polyester.

Rear adhesive layer: 3M468.
Tracks and pads: silk screened silver.

Connector: female, 10 ways on 2.54mm pitch.

Embossing on type 1TF and 1TCF: Ø 11mm round, 0.5mm thick.

Stick your keyboard on a smooth and clean surface.

Don't trap air bubbles when mounting.
